A guide for Tuple customers who want to use SAML SSO with OneLogin as the Identity Provider.

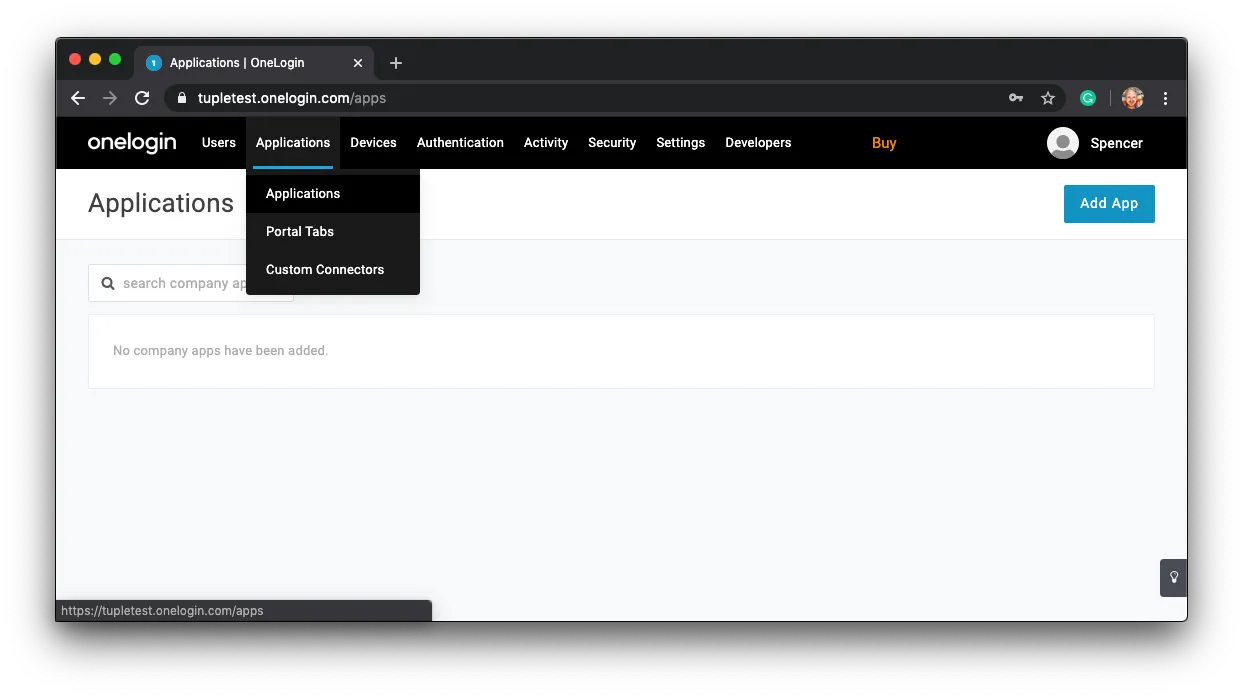

After signing in or creating your OneLogin account you’ll need to add a new SAML SSO application. Click on Applications
> Applications
in the top navigation bar.

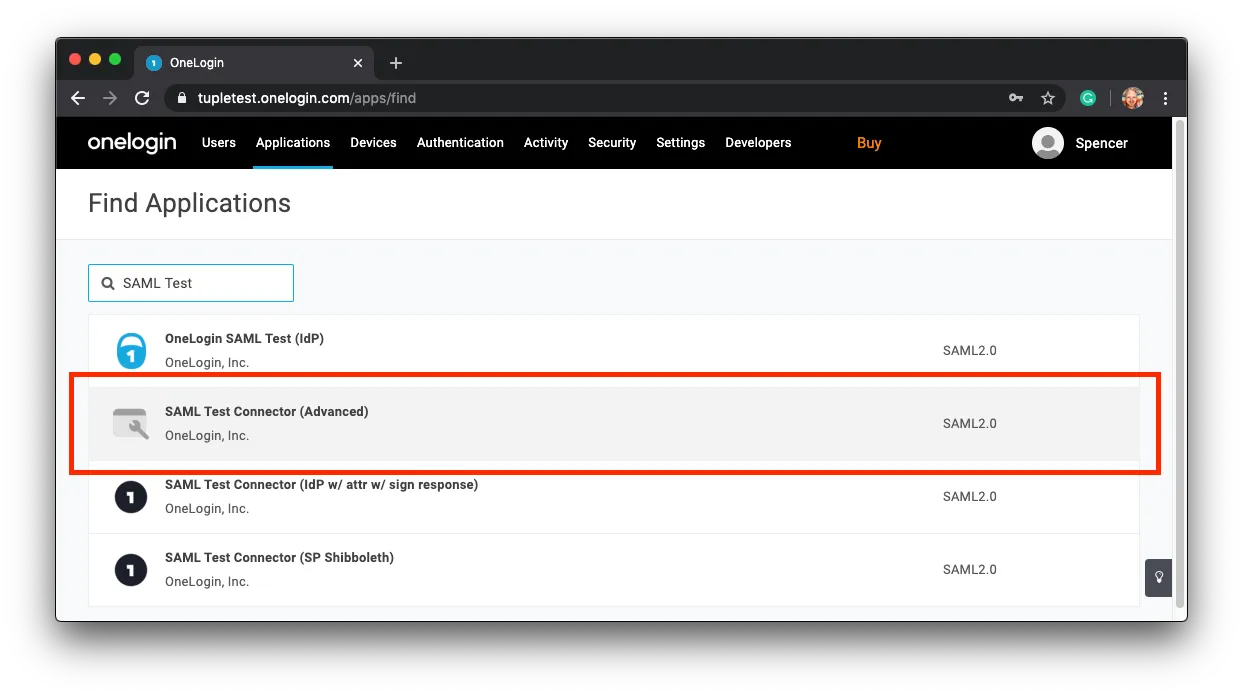

In the search field, enter: SAML Test
and select the SAML Test Connector (Advanced)
from the results.

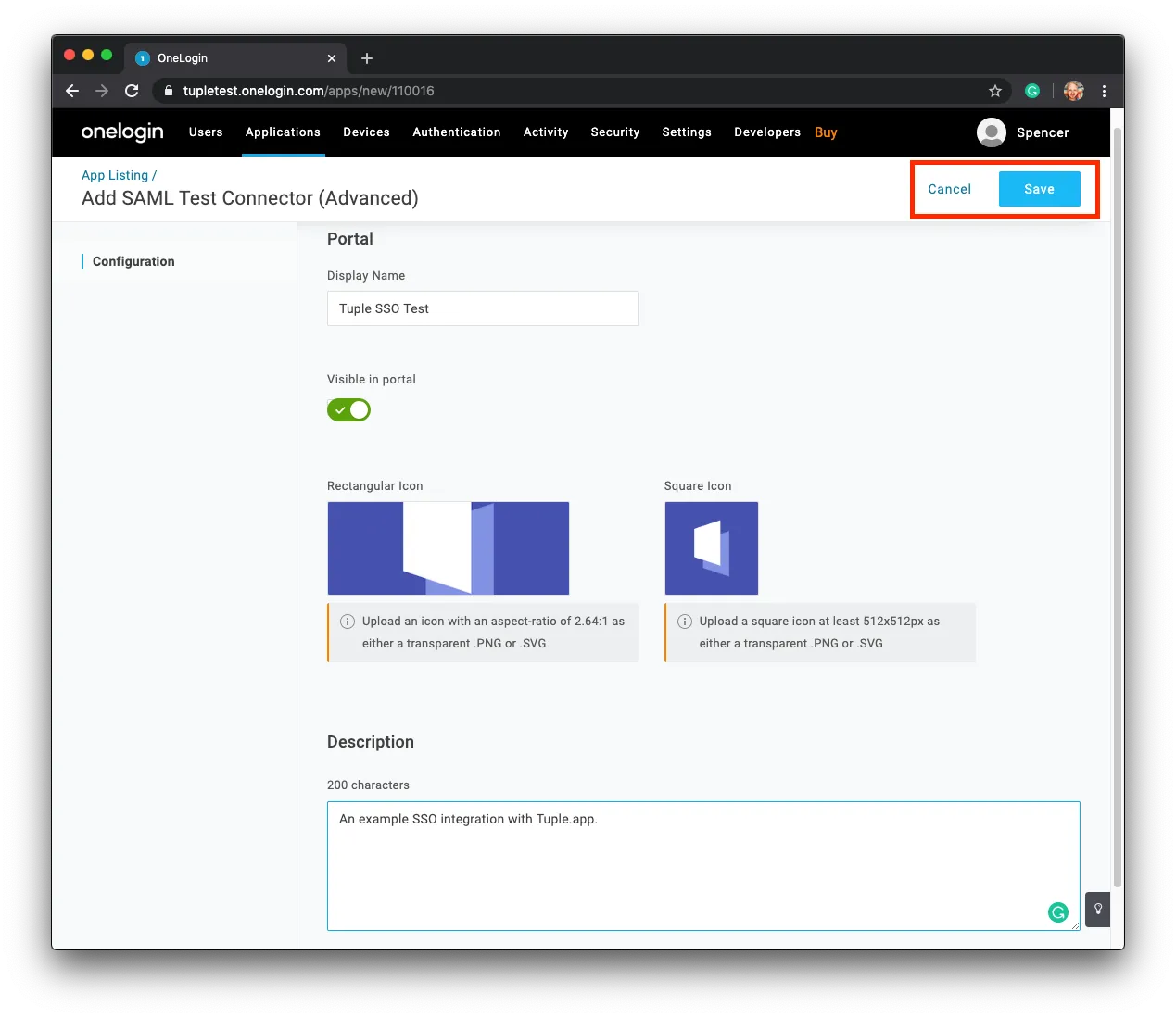

Fill in any required metadata, upload company logos you’d like to use, and save the new application.
After saving, click on Configuration
in the left-hand sidebar.

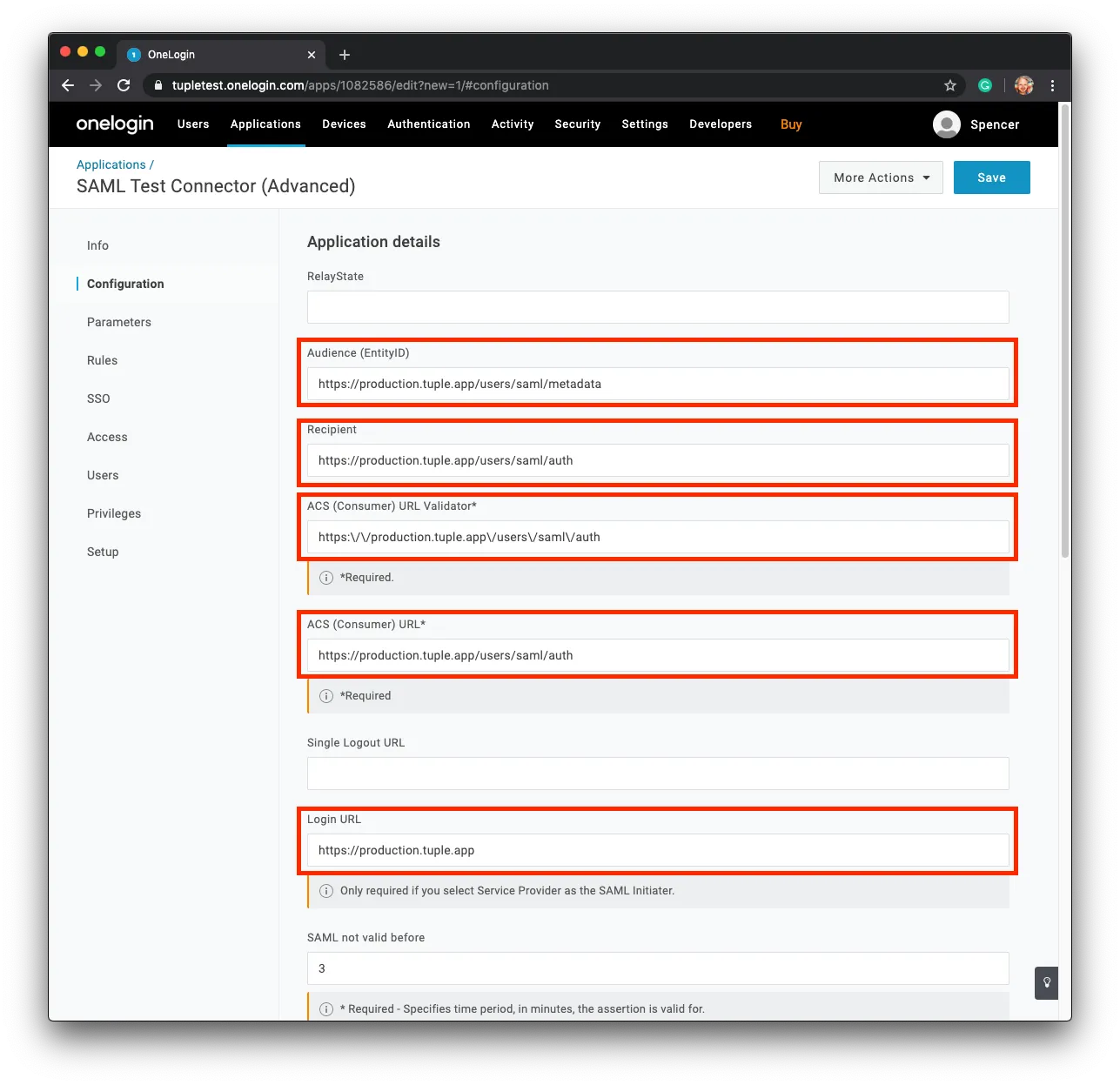

Fill in all the fields circled in red.
Audience (EntityID)
https://production.tuple.app/users/saml/metadata
Recipient
https://production.tuple.app/users/saml/auth
ACS (Consumer) URL Validator*
https:\\/\\/production.tuple.app\\/users\\/saml\\/auth
ACS (Consumer) URL*
https://production.tuple.app/users/saml/auth
Login URL
https://production.tuple.app

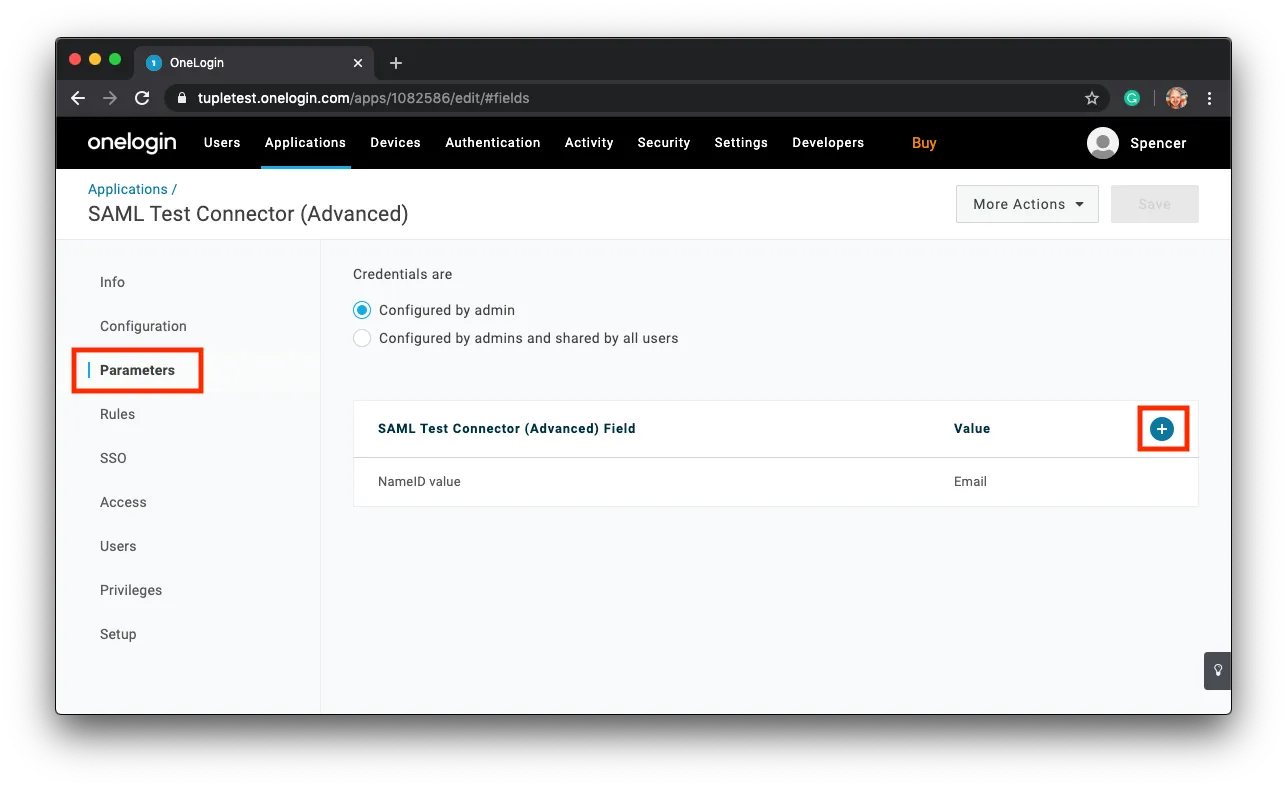

Next, head to the Parameters
section in the side bar and find the plus button to add new fields.
These fields will be sent along in the SSO response. There are three fields that Tuple requires in order to work: email
, first_name
, and last_name
.

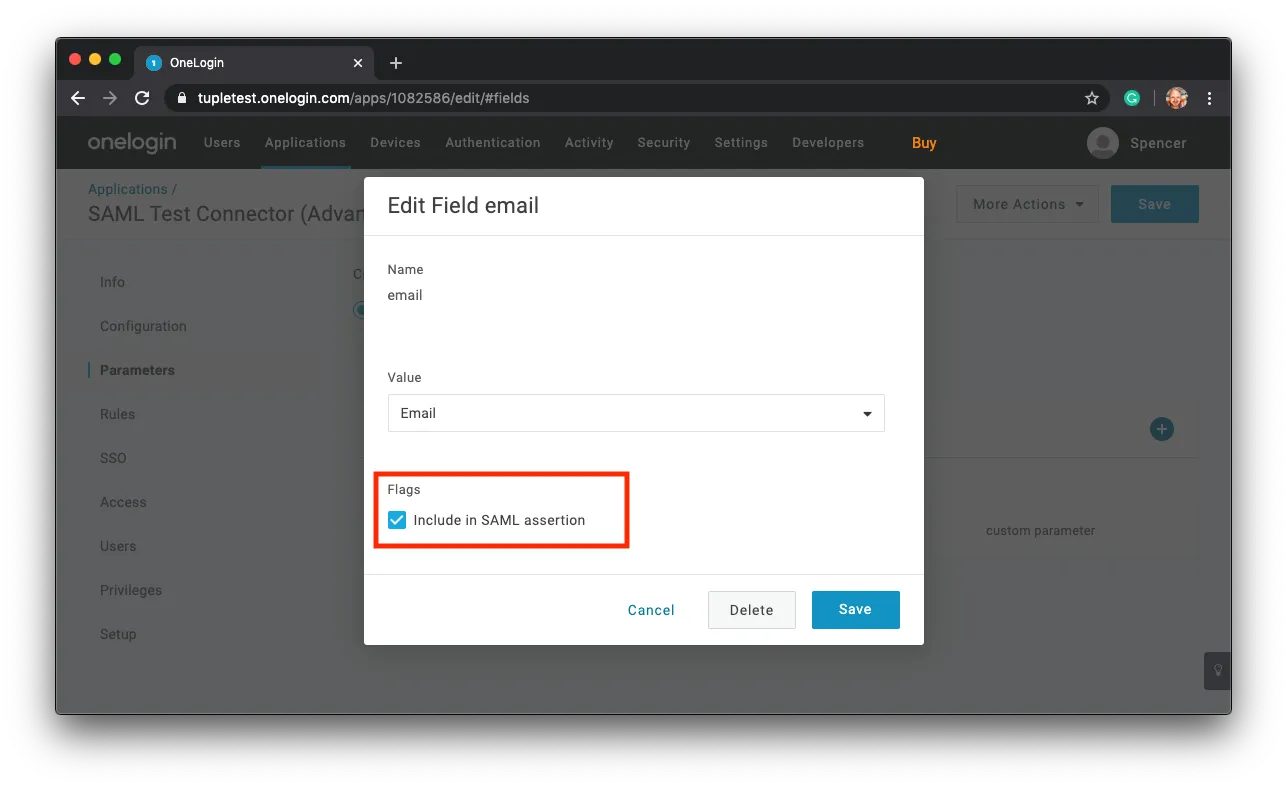

When adding these new fields, ensure that the checkbox Include in SAML Assertion
is checked.

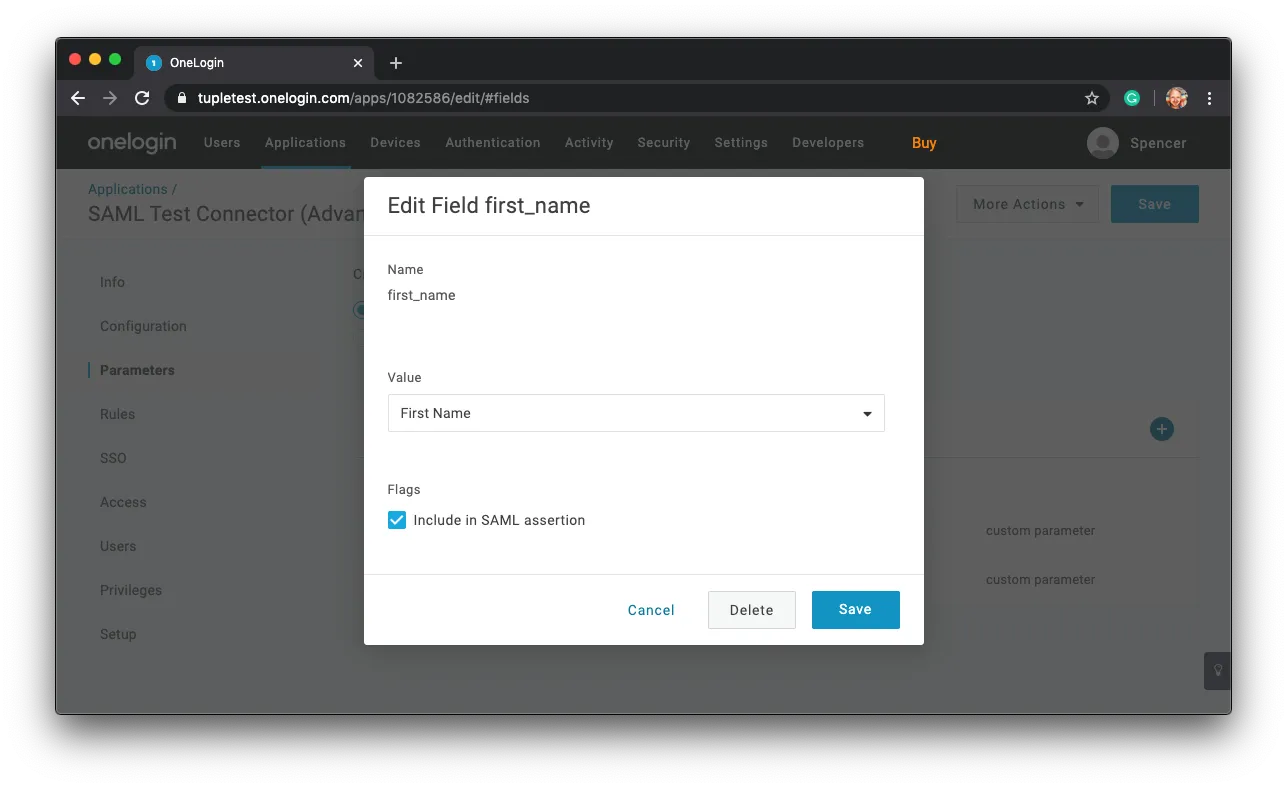

Repeat for first_name
and last_name
.

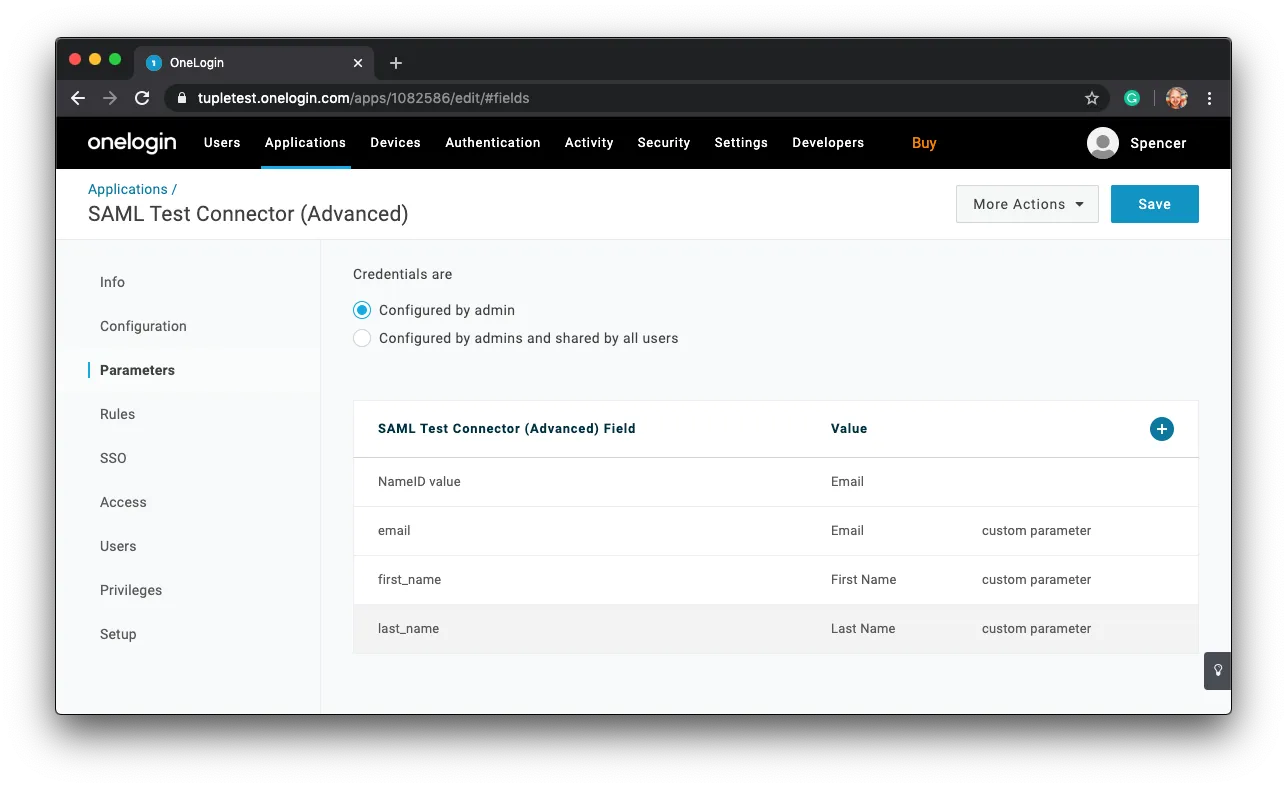

Once you’re finished with adding the required parameters the screen should look like:
Next, you’ll download your X.509 certificate.

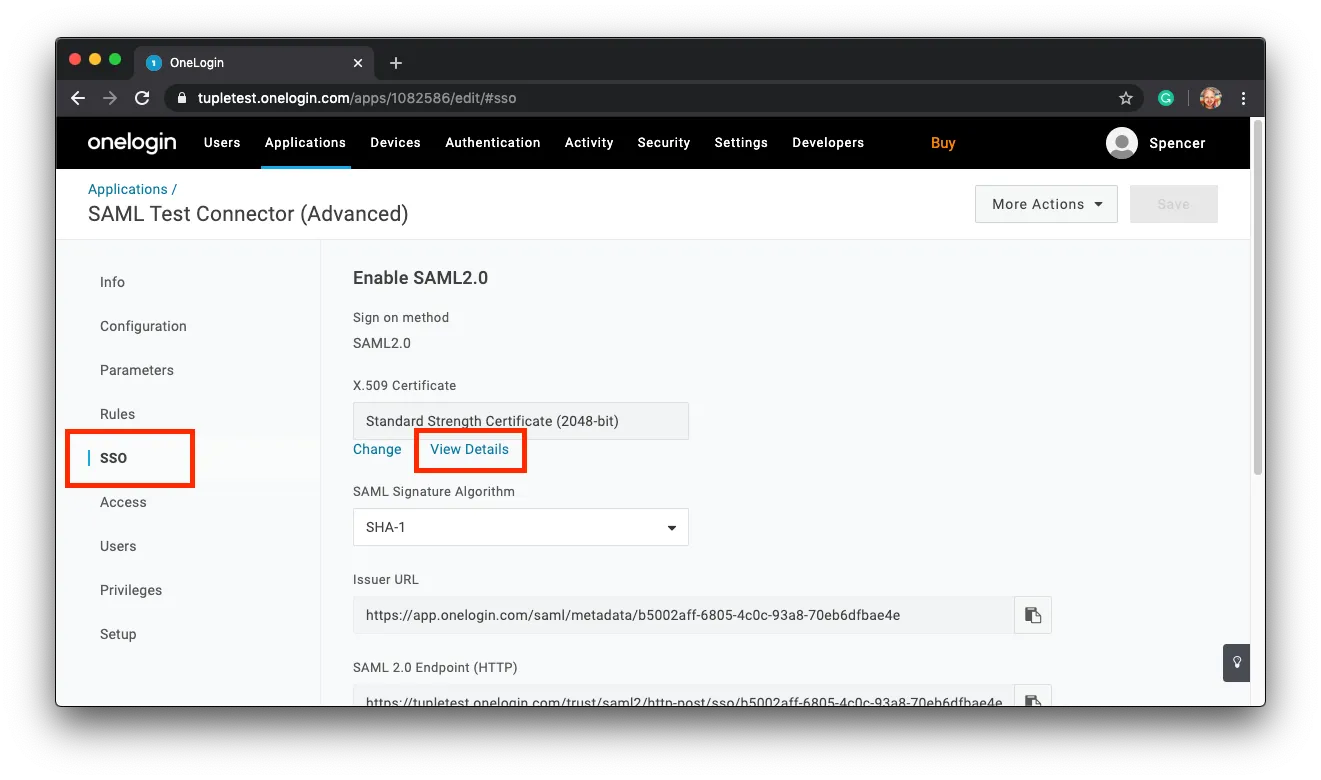

To download your certificate click on SSO
in the sidebar and find the link to View Details:

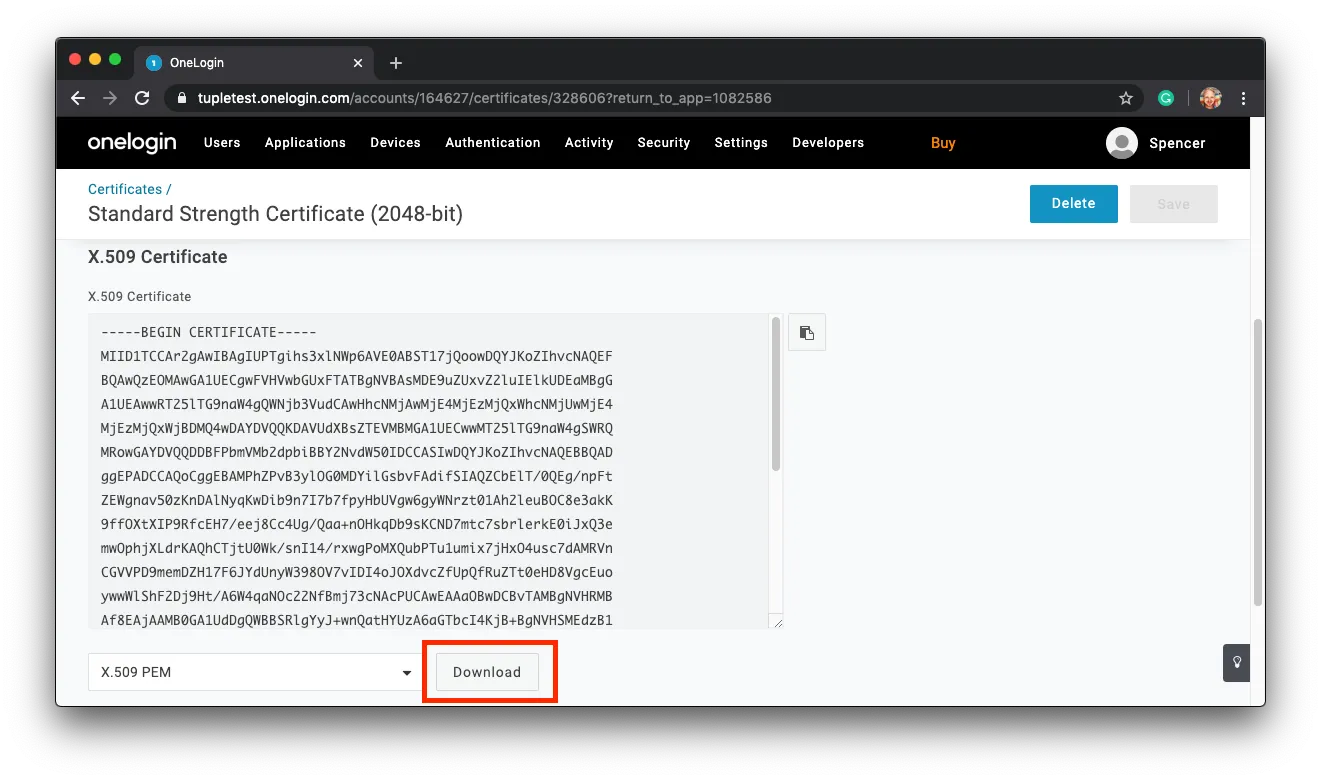

Click on Download
. You’ll need to upload this in Tuple shortly.

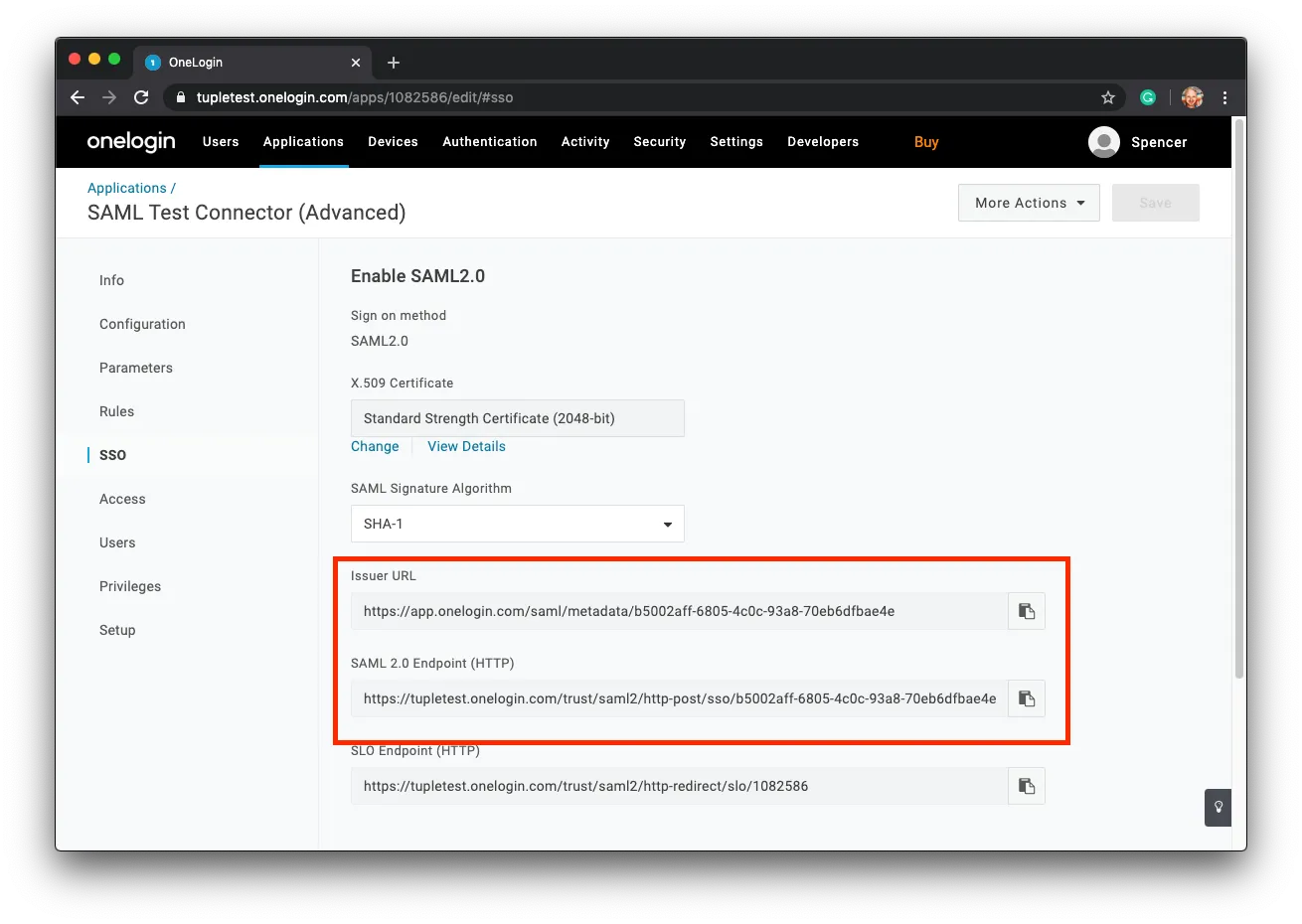

Finally, return back to the SSO
screen and locate the Issuer URL
and SAML 2.0 Endpoint (HTTP)
.
Navigate to the Settings
tab of the team management dashboard. Note: Only Team Owners have access to this page, so you will need to be Team Owner to access this page. If you need to find out who the Team Owner for your team is, view your profile.

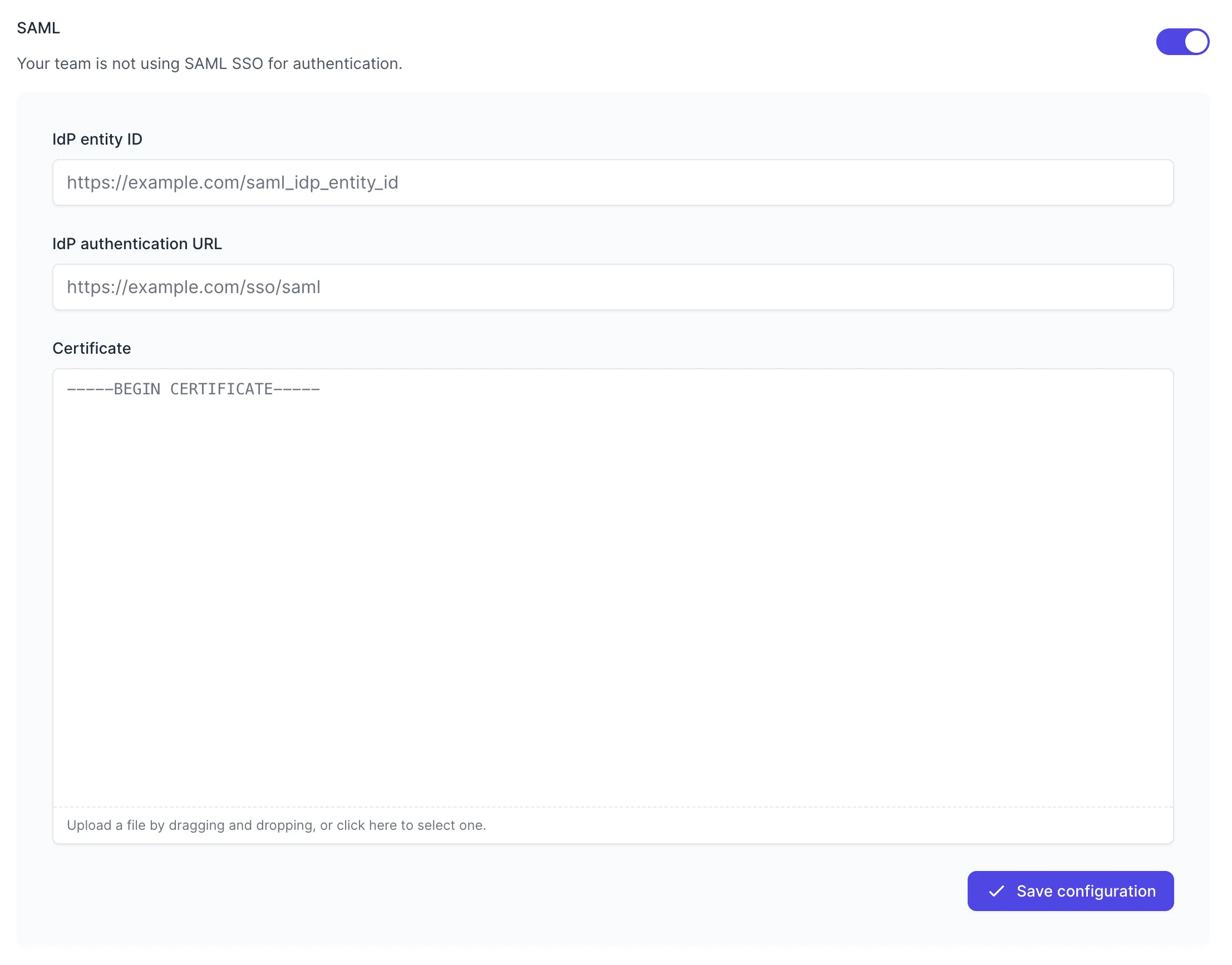

Toggle to Enable SAML, and the configuration form will be revealed:
Fill in the values with your metadata:
Issuer URL
(Entity ID)SAML 2.0 Endpoint (HTTP)
(authentication URL)Press “Save Configuration” to turn on SAML for your team. Once SAML is enabled, any active Tuple sessions will persist, but any new logins will be forced to authenticate using OneLogin. Log in here to verify that it’s working.
